Draw mold drawings
Objective: Based on the design planar graph, a 3D drawing can be created using software
Show the actual shape of the product from multiple angles to confirm whether it is a customer
The effect required to be achieved
Through professional mold drawing software, various professional effects of engraving such as surface modeling, model repair, and relief design can be achieved
Mold Engraving mold
Engraving mold
Objective: To produce by engraving on the mold material based on the 3D mold drawing drawn
The shape of the product is used for the later production and processing of the product
Equipment: Mold engraving machine
Working principle: It is achieved through the dedicated engraving software configured within the computer
Carry out design and layout, and have the computer transmit the design and layout information
The information is automatically transmitted to the engraving machine controller, and then the controller transmits this
This information is transformed into a belt capable of driving a stepper motor or a servo motor
The power signal controls the main unit of the engraving machine to generate the X, Y, and Z axes
The diameter of the cutting path for engraving. Meanwhile, the high-speed rotation on the engraving machine
The engraving head is fixed to by means of the cutting tool configured according to the processing material
The processing material on the main machine’s worktable can be cut and then engraved
All kinds of planar or three-dimensional relief graphics designed in computers and
Realize the automated operation of text engraving.

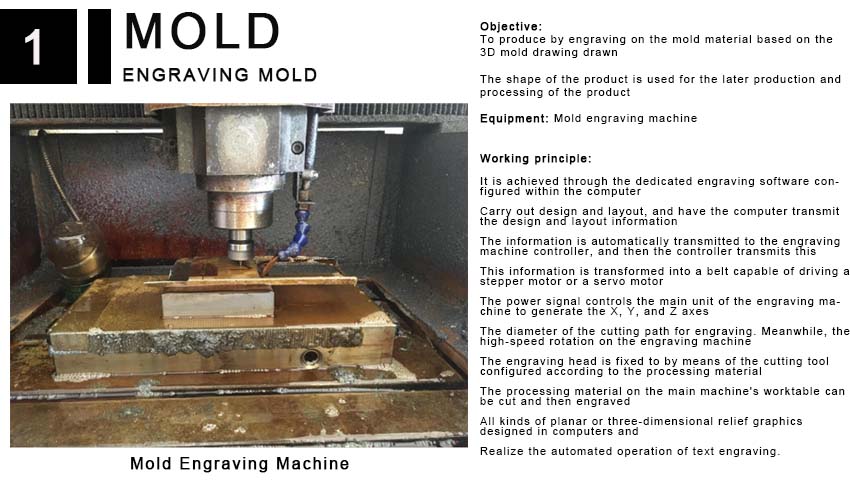

Mold Engraving mold 2

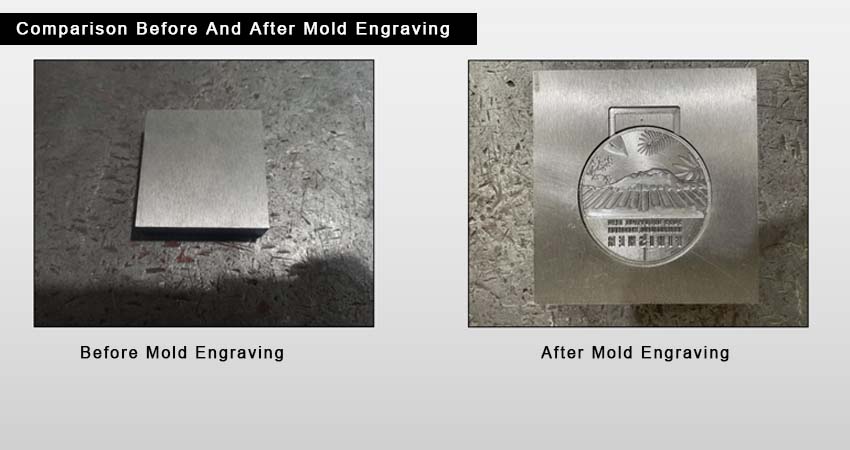

Mold Engraving mold 3
